Boom Lift

Leading Service Provider of jlg boom lift rental, boom lift rental, rental jlg 600s boom lift rental, 45 feet articulated boom lift rentals, boom lift rental services and jlg 660sj boom lift services from Pune.

JLG 450AJ Boom Lift

450AJ-image
Key Specs
Platform Height: 45-ft / 13.72-m
Horizontal Outreach: 25-ft / 7.62-m
Up and Over Height: 24-ft / 7.3-m
Platform Capacity: 550-lb / 250-kg
Key Features
  • Improved multifunction capability for increased productivity.
  • Delivers a zero calibration automatic load sensing system that eliminates the need to use external weights to calibrate the machine.
  • Provides durability and serviceability with DuraTough hood design.
  • Optimized 550-lb platform capacity for occupants and tools.
Accessories & Options
1/2-in Airline to Platform
43.5-lb Propane Tank
AC Generator, 2500W
Accessory Packages:
  • SkyGlazier® Package
  • SkyPower® Package
  • SkyWelder® Package
  • Arctic Package*
  • Cold Weather Package*
  • Hostile Environment Package*
Hostile Environment Extreme Package† (2WS Only)
Light Package
Platform Mesh to Mid or Top Rail
Aluminum or Plastic Platforms
Drop Bar, 36 x 36-in, 30 x 48-in, 30 x 60-in, 30 x 72-in
Fall Arrest, Rear Entry, 30 x 60-in
Inward Self-Closing Swing Gate, 30 x 48-in, 30 x 60-in, 30 x 72-in
SkySense™ Enhanced Detection System
Soft Touch
Storage Tray – Center or Corner
Tow Bar
Welder Ready Package
White Noise Alarm
Buy Now Get on Rent
Standard Specifications
Performance
Platform Height 45 ft / 13.72 m
Horizontal Outreach 25 ft / 7.62 m
Up and Over Height 24 ft / 7.3 m
Swing 355 Degrees Non-Continuous
Platform Capacity 550 lb / 250 kg
Platform Rotator 180 Degrees Hydraulic
Jib 4 ft 1 in / 1.24 m
Range of Articulation 145 Degrees (-76, +69)
Weight* 14,150 lb / 6,418 kg
Max. Ground Bearing Pressure 65 psi / 4.5 kg/cm²
Drive Speed 4.25 mph / 6.8 km/h
Gradeability (2WD / 4WD) 30% / 45%
Tilt Cut Out 5 Degrees
Axle Oscillation 4 in / 0.1 m
Turning Radius (Inside) 6 ft 9 in / 2.06 m
Turning Radius (Outside) 15 ft 8 in / 4.78 m
Engine
Dual Fuel – Kubota WG2503: 60 hp / 44 kW
Diesel Fuel – Deutz D2.9L Tier 4 Final: 49 hp / 36.4 kW
Fuel Tank Capacity: 16 gal / 60.6 L
Tires
Standard: Foam Filled, 33/1550 x 16.5
Optional:
  • Foam Filled Low Profile Non-marking, IN135/55D20
  • Foam Filled Low Profile, IN135/55D20
  • Foam Filled Non-marking, 12 x 16.5
  • Foam Filled, 12 x 16.5 or 33/1550 x 15.5
  • Foam Filled Turf & Sand, 33 x 16LL500
  • Solid Low Profile Non-marking, 33 x 12-20
Hydraulic System
System Capacity: 173 gal / 65.5 L
Tank Capacity: 15.3 gal / 58 L
Auxiliary Power: 12V DC
Standard Features
  • 4-ft-1-in (1.24-m) Articulating Jib
  • 5 Degree Tilt Alarm / Indicator Light
  • 12V-DC Auxiliary Power
  • 110V-AC Receptacle in the Platform
  • Cast Aluminum Control Box
  • ClearSky Smart Fleet™ Hardware (CSS0)**
  • Control ADE® System
  • LED Motion/Amber Beacon (CSS0)**
  • Improved Multi-Function Controls
  • Horn
  • Hourmeter
  • Gull-Wing Turntable Hoods
  • Lifting/Tie Down Lugs
  • Load Sensing System
  • Motion Alarm
  • Oscillating Axle
  • Proportional Controls
  • SkyGuard SkyLine™
  • Swing-Out Engine Tray
  • Four-Wheel Hydrostatic Drive
  • Platform Console Machine Status Light Panel

E450AJ Boom Lift

450AJ-image
Key Specs
Platform Height: 45-ft / 13.72-m
Horizontal Outreach: 23-ft 9-in/ 7.24-m
Up and Over Reach: 25-ft 3-in / 7.7-m
Platform Capacity: 550-lb / / 227-kg
Key Features
  • Maximum maneuverability by moving over uneven surfaces with Automatic Traction Control.
  • Achieve optimum productivity with longer duty cycles.
  • Produces zero emissions, 100% environmentally friendly
  • Enhanced up and over access with jib.
Accessories & Options
1/2-in Airline to Platform
Ambient White Noise Alarm
Batteries, 305 Amp-Hr AGM
Inverter - 2000W2
Light Package5
Platform Mesh to Mid or Top Rail
Aluminum or Plastic
Platforms
  • Drop Bar, 36 x 36-in, 30 x 48-in, 30 x 60-in, 30 x 72-in
  • Fall Arrest, Rear Entry4,30 x 60-in,30 x 72-in
    • Inward Self-Closing Swing Gate, 30 x 48-in, 30 x 60-in, 30 x 72-in
Bolt-on Fall Arrest System
  • 30 x 48-in, 30 x 60-in1,3,6
Platform Padding3,7
  • 30 x 48-in, 30 x 60-in
  • Fall Arrest (Platform Required) 30 x 72-in
SkySense® Enhanced Detection System
Soft Touch, 30 x 60-in3
Storage Tray - Center
UL EE Rating
Standard Specifications
Performance
Platform Height 45 ft / 13.72 m
Horizontal Outreach 23 ft 9 in / 7.24 m
Up and Over Height 25 ft 3 in / 7.7 m
Swing 360 Degrees Non-Continuous
Platform Capacity 500 lb / 227 kg
Platform Rotator 180 Degrees Hydraulic
Jib Range of Articulation (Vertical) 141 Degrees (+86, -55)
Weight* 14,400 lb / 6,532 kg
Ground Bearing Pressure 110 psi / 7.6 kg/cm²
Max Drive Speed 4.5 mph / 7.2 km/h
Gradeability 30%
Turning Radius Inside (2WS/4WS) 2 ft / 0.61 m
Turning Radius Outside (2WS/4WS) 10 ft 4 in / 3.15 m
Power Source
Electrical System: 48V DC
Batteries: 8 x 6V, 375 amp-hr
Drive Motors: Dual Electric Traction
Tires
Standard: In240/55D17.5 Foam-Filled Non-marking
Optional:
  • 26 x 7 x 20 Non-marking
  • 240/55 x 17.5 Foam-filled
Hydraulic System
Capacity: 4 gal / 15.14 L
Motor/Pump: Permanent Magnet Motor/Gear Pump
Standard Features
  • 110V-AC Receptacle in the Platform
  • 12V DC Auxilliary Power
  • 180 Degree Hydraulic Platform Rotator
  • 3 Degree Tilt Cut-out
  • All Motion Alarm
  • Automatic Traction Control(ATC)
  • Battery Condition Indicator
  • Brushless AC Motors
  • ClearSky Smart Fleet™ Hardware (CS550)
  • Horn
  • Hourmeter
  • LED Motion/Amber Beacon (CS550)
  • Lifting/Tie Down Lugs
  • Load Sensing System
  • Platform Console Machine Status Light Panel**
  • SkyGuard SkyLine™
  • Tilt Light and Alarm
Buy Now Get on Rent

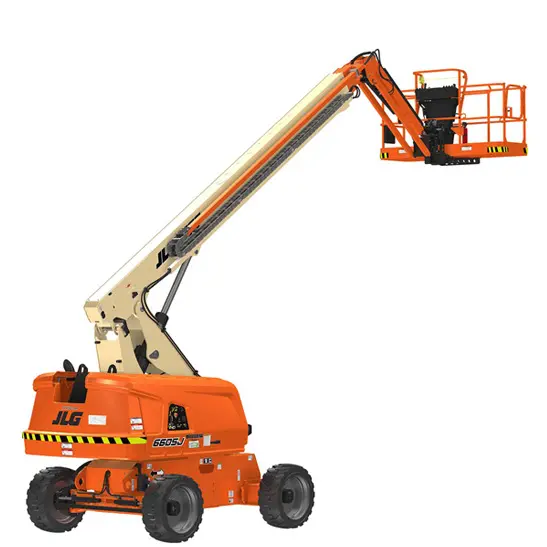

JLG 660SJ Telescopic Boom Lift

450AJ-image
Key Specs

Platform Height:

65-ft 8-in / 20.02-m

Horizontal Outreach:

57-ft 1-in / 17.40-m

Drive Speed:

3.8 mph / 6.1 km/h

Platform Capacity:

Restricted: 750-lb / 340-kg Unrestricted: 550-lb / 249-kg

Key Features

One of the most popular JLG 60-ft boom lifts.

Delivers a zero calibration automatic load sensing system that eliminates the need to use external weights to calibrate the machine.

Utilizes intuitive platform controls to reduce operator training time.

Available accessories and options provide the flexibility to upfit the machine to meet unique job requirements.

Accessories & Options
1/2-in Airline to Platform
Ambient White Noise Alarm
Batteries, 305 Amp-Hr AGM
Inverter - 2000W2
Platform Mesh to Mid or Top Rail
Light Package5
Platforms
  • Drop Bar, 36 x 36-in, 30 x 48-in, 30 x 60-in, 30 x 72-in
  • Fall Arrest, Rear Entry4,30 x 60-in,30 x 72-in
    • Inward Self-Closing Swing Gate, 30 x 48-in, 30 x 60-in, 30 x 72-in
Bolt-on Fall Arrest System
  • 30 x 48-in, 30 x 60-in1,3,6
Platform Padding3,7
  • 30 x 48-in, 30 x 60-in
  • Fall Arrest (Platform Required) 30 x 72-in
Aluminum or Plastic
SkySense® Enhanced Detection System
Soft Touch, 30 x 60-in3
Storage Tray - Center
UL EE Rating
Buy Now Get on Rent
Standard Specifications
Performance
Platform Height 65 ft 8 in / 20.02 m
Horizontal Outreach 57 ft 1 in / 17.40 m
Swing 360 Degrees Continuous
Platform Capacity (Restricted) 750 lb / 340 kg
Platform Capacity (Unrestricted) 550 lb / 249 kg
Platform Rotator 180 Degrees Hydraulic
Jib Length 6 ft / 1.83 m
Jib Range of Articulation 132 Degrees (+71, -61)
Weight* 25,341 lb / 11,494 kg
Max. Ground Bearing Pressure 86 psi / 6.00 kg/cm²
Drive Speed 3.8 mph / 6.1 km/h
Gradeability 45%
Tilt Cut Out 5 Degrees
Axle Oscillation 8 in / 0.2 m
Turning Radius 2WS (Inside/Outside) Inside: 9 ft 7 in / 2.92 m, Outside: 19 ft 7 in / 5.96 m
Turning Radius 4WS (Inside/Outside) Inside: 5 ft 3 in / 1.61 m, Outside: 12 ft 8 in / 3.87 m
Engine
Dual Fuel – Ford MSG425-DF 84 hp / 62.6 kW
Diesel Fuel – Deutz D2.9L4 Tier 4 Final 48.8 hp / 36.4 kW
Fuel Tank Capacity 31 gal / 117 L
Tires
Standard: Foam Filled, 14(IN355)X17.5(55D625)
Optional:

Foam Filled Non-Marking, 14(IN355)X17.5(55D625)

Foam Filled, Turf & Sand, 41/18LLx22.5 Quad Tracks
Hydraulic System
Hydraulic Reservoir 34 gal / 129 L
Auxiliary Power 12V DC
Standard Features
  • 5 Degree Tilt Alarm / Indicator Light
  • 12V-DC Auxiliary Power
  • 110V-AC Receptacle in the Platform
  • 180 Degree Hydraulic Platform Rotator
  • ClearSky Smart Fleet™ Hardware (CS550)**
  • Control ADE® System
  • Four-Wheel Hydrostatic Drive
  • Glow Plugs (Diesel Engines)
  • Horn
  • Hourmeter
  • Improved Multi-Function Controls
  • Interactive Display at Ground Controls
  • LED Motion / Amber Beacon (CS550)**
  • Lifting / Tie Down Lugs
  • Motion Alarm
  • Oscillating Axle
  • Platform Console Machine Status Light Panel***
  • Proportional Controls
  • SkyGuard SkyLine™
  • Swing-Out Engine Tray

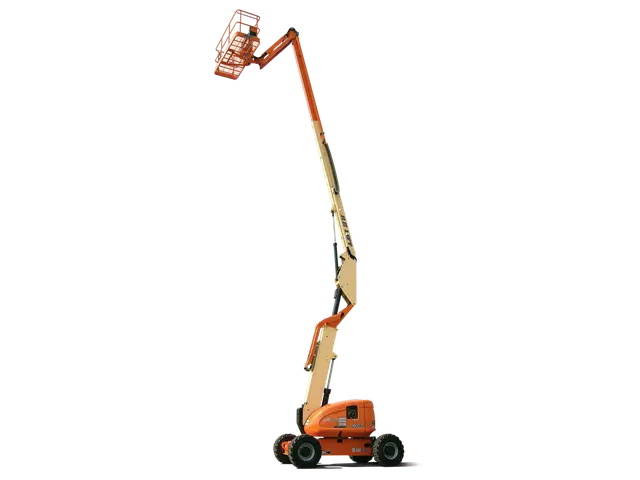

JLG 600AJ Articulating Boom Lift

450AJ-image
Key Specs

Platform Height:

60-ft 7-in / 18.47-m

Up and Over Height:

26-ft 7-in / 8.1-m

Horizontal Outreach:

39-ft 9-in / 12.10-m

Platform Capacity:

500-lb / 227-kg

Key Features

Delivers a zero calibration automatic load sensing system that eliminates the need to use external weights to calibrate the machine.

Delivers unmatched maneuverability for fined work areas with a fuelefficient Tier 4 engine.

Backed by industry-leading, customerfirst service and support.

Available accessories and options provide the flexibility to upfit the machine to meet unique job requirements.

Accessories & Options
1/2-in Air Line to Platform
43.5-lb Propane Tank
AC Generator, 2500W or 4000W
Accessory Packages:
  • SkyGlazier® Package
  • SkyPower® Package
    • SkyWelder® Package
Arctic Package
Cold Weather Start Package2
Hostile Environment Package
Light Package
Platform Mesh to Mid or Top Rail
  • Aluminum or Plastic
SkySense® Enhanced Detection System
Platforms
  • Drop Bar, 30 x 36-in, 30 x 48-in, 30 x 60-in, 36 x 72-in
  • Fall Arrest, Rear Entry, 36 x 72-in, 36 x 96-in
  • Inward Self-Closing Swing Gate, 30 x 48-in, 30 x 60-in, 36 x 72-in, 36 x 96-in
  • Tri-Entry, Drop Bar or Swing Gate, 36 x 72-in, 36 x 96-in
SSoft Touch
Storage Tray - Center or Corner
Tow Bar
Welder Ready Package
White Noise Alarm
Standard Specifications
Performance
Platform Height 60-ft 7-in / 18.47-m
Horizontal Outreach 39-ft 9-in / 12.1-m
Up and Over Height 26-ft 7-in / 8.1-m
Swing 360 Degrees Continuous
Platform Capacity 500-lb / 227-kg
Platform Rotator 180 Degrees Hydraulic
Jib Range of Articulation 130 Degrees (+70, -60)
Weight* 22,691-lb / 10,292-kg
Max. Ground Bearing Pressure 75 psi / 5.5-kg/cm²
Drive Speed 4.25 mph / 6.8 km/h
Gradeability 2WD / 4WD 30% / 45%
Tilt Cut Out 4 Degrees
Axle Oscillation 8-in / 20-cm
Turning Radius 2WS Inside 10-ft 11-in / 3.33-m
Turning Radius 2WS Outside 17-ft 8-in / 5.38-m
Turning Radius 4WS Inside 4-ft 7-in / 1.41-m
Turning Radius 4WS Outside 9-ft 7-in / 2.92-m
Engine
Dual Fuel – Ford MSG425 84 hp / 62 kW
Diesel Fuel – Deutz D2.9L4 Tier 4 Final 48.8 hp / 36.4 kW
Fuel Tank Capacity 30 gal / 113.6 L
Tires
Standard: Foam Filled , IN355/55D-625
Optional:

Foam Filled Non-marking, IN355/55D-625

Foam Filled Turf & Sand, 41 x 18LL x 22.5
Hydraulic System
Capacity 30.6 gal / 115.8 L
Auxiliary Power 12V DC
Standard Features
  • 4 Degree Tilt Alarm/ Indicator Light
  • 12V-DC Auxiliary Power
  • 110V-AC Receptacle in the Platform
  • All Motion Alarm
  • ClearSky Smart Fleet™ Hardware (CS550)
  • Control ADE® System
  • Four-Wheel Hydrostatic Drive
  • Glow Plugs (Diesel Engines)
  • Horn
  • Gull-Wing Engine Hood
  • Hourmeter
  • LED Motion/Amber Beacon (CS550)
  • Lifting / Tie Down Lugs
  • Load Sensing System
  • Oscillating Axle
  • Platform Console Machine Status Light Panel**
  • Proportional Controls
  • SkyGuard SkyLine™
  • Swing-Out Engine Tray
Buy Now Get on Rent

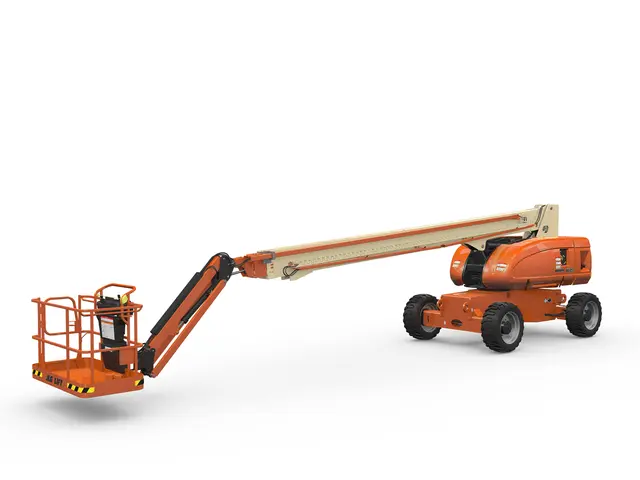

860SJ Telescopic Boom Lift

450AJ-image
Key Specs

Platform Height:

86-ft / 26.21-m

Drive Speed:

3.5 mph / 5.6 km/h

Horizontal Outreach:

75-ft / 22.86-m

Platform Capacity:

Restricted: 750-lb / 340-kg Unrestricted: 500-lb / 227-kg

Key Features

Reach full elevation in less than 70 seconds.

Utilizes the JLG Advanced Design Electronics System that reduces your costs by increasing fuel efficiency while also reducing emissions.

Delivers a zero calibration automatic load sensing system that eliminates the need to use external weights to calibrate the machine.

Available accessories and options provide the flexibility to upfit the machine to meet unique job requirements.

Accessories & Options
1/2-in Air Line to Platform
AC Generator, 2500W or 4000W
Accessory Packages:
  • SkyGlazier® Package
  • SkyPower® Package
    • SkyWelder® Package
Arctic Package1
Bolt On Fall Arrest System
Cold Weather Package2
Light Package
Hostile Environment Package³
Platform Mesh to Mid or Top Rail
  • Aluminum or Plastic
Platforms
  • Drop Bar, 30 x 36-in, 30 x 48-in, 30 x 60-in, 36 x 72-in, 36 x 96-in
  • Fall Arrest, Rear Entry, 36 x 72-in, 36 x 96-in
  • Inward Self-Closing Swing Gate, 30 x 48-in, 30 x 60-in, 36 x 72-in, 36 x 96-in
  • Tri-Entry, Drop Bar or Swing Gate, 36 x 72-in, 36 x 96-in
SkySense® Enhanced
Storage Tray - Center or Corner
Soft Touch System
Buy Now Get on Rent
Standard Specifications
Performance
Platform Height (Elevated) 86-ft / 26.21-m
Horizontal Outreach 75-ft / 22.86-m
Swing 360 Degrees Continuous
Platform Capacity (Restricted) 750-lb / 340-kg
Platform Capacity (Unrestricted) 500-lb / 227-kg
Platform Rotator 180 Degrees Hydraulic
Jib Length 6-ft / 1.83-m
Jib Range of Articulation 131 Degrees (+70, -60)
Weight* 36,840-lb / 16,710-kg
Max. Ground Bearing Pressure 81 psi / 5.69 kg/cm²
Drive Speed 3.5 mph / 5.6 km/h
Gradeability 2WD 25%
Gradeability 4WD 45%
Tilt Cut Out 4 Degrees
Turning Radius (Inside) 12-ft 6-in / 3.8-m
Turning Radius (Outside) 19-ft 8-in / 6.02-m
Engine
Dual Fuel – Ford-MSG425-DF 84 hp / 62.6 kW
Diesel Fuel – Deutz D2.9L4 Tier 4 Final 67 hp / 50 kW
Fuel Tank Capacity 31 gal / 117.35 L
Tires
Standard: Foam Filled, 15-625(24.5)
Optional:

Foam Filled Non-Marking, 18-625

Foam Filled, 18-625(24.5)

Foam Filled, Turf & Sand, 41x18LLx22.5
Hydraulic System
Capacity 48 gal / 181.7 L
Pump Fixed Displacement Gear
Standard Features
  • 4 Degree Tilt Alarm/ Indicator Light
  • 12V-DC Auxiliary Power
  • 110V-AC Receptacle in the Platform
  • 180 Degree Hydraulic Platform Rotator
  • ClearSky Smart Fleet™ Hardware (CS550)**
  • Control ADE® System
  • Glow Plugs (Diesel Engines)
  • Horn
  • Hourmeter
  • Hydrostatic Drive
  • Improved Multi-Function Controls
  • LED Motion/Amber Beacon (CS550)**
  • Interactive Display at Ground Controls
  • Lifting / Tie Down Lugs
  • Load Sensing System
  • Oscillating Axle
  • Motion Alarm
  • Platform Console Machine Status Light Panel***
  • Proportional Controls
  • SkyGuard SkyLine™
  • Swing-Out Engine Tray

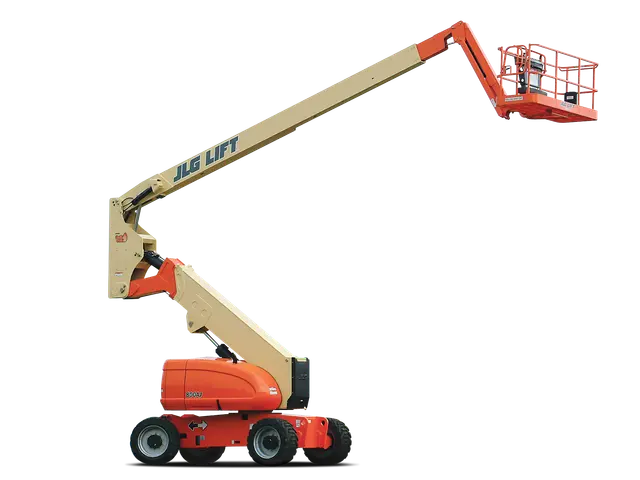

JLG 800AJ Articulating Boom Lift

800aj-image
Key Specs

Platform Height:

80-ft / 24.38-m

Up and Over Height:

32-ft 1-in / 9.78-m

Horizontal Outreach:

51-ft 10-in / 15.8-m

Platform Capacity:

500-lb / 227-kg

Key Features

Delivers a zero calibration automatic load sensing system that eliminates the need to use external weights to calibrate the machine.

Provides economical diesel performance to tackle the terrain.

Backed by industry-leading, customerfirst service and support.

Available accessories and options provide the flexibility to upfit the machine to meet unique job requirements.

Accessories & Options
1/2-in Air Line to Platform
43.5-lb Propane Tank
AC Generator, 2500W or 4000W
Accessory Packages:
  • SkyGlazier® Package
  • SkyPower® Package
    • SkyWelder® Package
Arctic Package¹
Cold Weather Start Package²
Hostile Environment Package
Light Package
Platform Mesh to Mid or Top Rail
  • Aluminum or Plastic
SkySense® Enhanced Detection System
Platforms
  • Drop Bar, 30 x 36-in, 30 x 48-in, 30 x 72-in, 36 x 72-in, 36 x 96-in
  • Fall Arrest, Rear Entry, 36 x 72-in, 36 x 96-in
  • Inward Self-Closing Swing Gate, 30 x 48-in, 30 x 60-in, 36 x 72-in, 36 x 96-in
  • Tri-Entry, Drop Bar or Swing Gate, 36 x 72-in, 36 x 96-in
Soft Touch
SkySense® Enhanced Detection System
Storage Tray - Center or Corner
Standard Specifications
Performance
Platform Height 80-ft / 24.38-m
Horizontal Outreach 51-ft 10-in / 15.8-m
Up and Over Height 32-ft 1-in / 9.78-m
Swing 360 Degrees Continuous
Platform Capacity 500-lb / 227-kg
Platform Rotator 180 Degrees Hydraulic
Jib Length 6-ft / 1.83-m
Jib Range of Articulation 130 Degrees (+70, –60)
Weight* 34,738-lb / 15,757-kg
Max. Ground Bearing Pressure 76 psi / 5.3 kg/cm²
Drive Speed 3.0 mph / 4.8 km/h
Gradeability 2WD / 4WD 30% / 45%
Tilt Cut Out 4 Degrees
Turning Radius - Inside (2WS/4WS) 12-ft 6-in / 3.8-m) / 6-ft / 1.83-m
Turning Radius - Outside (2WS/4WS) 19-ft 8-in / 6.02-m / 11-ft 7-in / 3.53-m
Engine
Dual Fuel – Ford MSG 425DF 84 hp / 62.6 kW/td>
Diesel Fuel – Deutz D2.9L4 Tier 4 Final 67 hp / 50 kW
Fuel Tank Capacity 39 gal / 147.6 L
Tires
Standard: Foam Filled, 18-625
Optional:

Foam Filled Non-marking, 18 x 625

Foam Filled Sand & Turf, 18-22.5

Hydraulic System
Capacity 40 gal / 151.4 L
Auxiliary Power 12V DC
Standard Features
  • 4 Degree Tilt Alarm/ Indicator Light
  • 12V-DC Auxiliary Power
  • 110V-AC Receptacle in the Platform
  • All Motion Alarm
  • ClearSky Smart Fleet™ Hardware (CS550)**
  • Control ADE® System
  • Articulating Jib
  • Engine Distress Shutdown — Selectable via Analyzer
  • Gull-Wing Hoods
  • Engine Distress Warning
  • Hourmeter
  • Hydrostatic Drive
  • LED Motion/Amber Beacon (CS550)**
  • Lifting / Tie Down Lugs
  • Platform Console Machine
  • Load Sensing System
  • Oscillating Axle
  • Platform Console Machine Status Light Panel**
  • Proportional Controls
  • SkyGuard SkyLine™
  • Swing-Out Engine Tray
Buy Now Get on Rent
