Articulated Boom Lifts
Pioneers in the industry, we offer battery operated boom lift and cherry picker rental services from India.

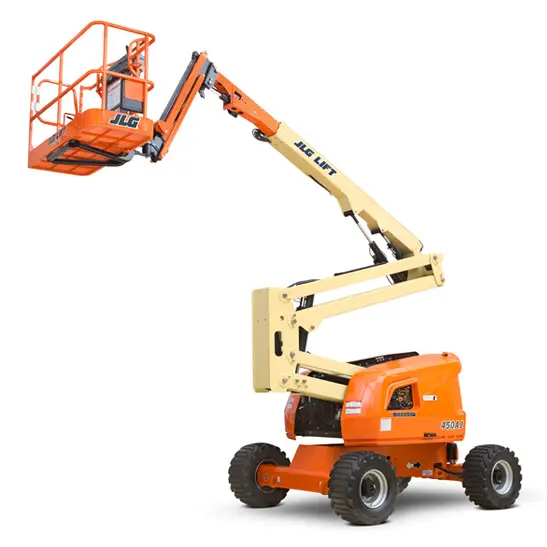

JLG 450AJ Boom Lift
Key Specs
Platform Height: 45-ft / 13.72-m
Horizontal Outreach: 25-ft / 7.62-m
Up and Over Height: 24-ft / 7.3-m
Platform Capacity: 550-lb / 250-kg
Key Features
- Improved multifunction capability for increased productivity.
- Delivers a zero calibration automatic load sensing system that eliminates the need to use external weights to calibrate the machine.
- Provides durability and serviceability with DuraTough hood design.
- Optimized 550-lb platform capacity for occupants and tools.
Accessories & Options
1/2-in Airline to Platform
43.5-lb Propane Tank
AC Generator, 2500W
Accessory Packages:
- SkyGlazier® Package
- SkyPower® Package
- SkyWelder® Package
- Arctic Package*
- Cold Weather Package*
- Hostile Environment Package*
Hostile Environment Extreme Package† (2WS Only)
Light Package
Platform Mesh to Mid or Top Rail
Aluminum or Plastic Platforms
Drop Bar, 36 x 36-in, 30 x 48-in, 30 x 60-in, 30
x 72-in
Fall Arrest, Rear Entry, 30 x 60-in
Inward Self-Closing Swing Gate, 30 x 48-in, 30 x
60-in, 30 x 72-in
SkySense™ Enhanced Detection System
Soft Touch
Storage Tray – Center or Corner
Tow Bar
Welder Ready Package
White Noise Alarm
Standard Specifications
Performance
| Platform Height | 45 ft / 13.72 m |
| Horizontal Outreach | 25 ft / 7.62 m |
| Up and Over Height | 24 ft / 7.3 m |
| Swing | 355 Degrees Non-Continuous |
| Platform Capacity | 550 lb / 250 kg |
| Platform Rotator | 180 Degrees Hydraulic |
| Jib | 4 ft 1 in / 1.24 m |
| Range of Articulation | 145 Degrees (-76, +69) |
| Weight* | 14,150 lb / 6,418 kg |
| Max. Ground Bearing Pressure | 65 psi / 4.5 kg/cm² |
| Drive Speed | 4.25 mph / 6.8 km/h |
| Gradeability (2WD / 4WD) | 30% / 45% |
| Tilt Cut Out | 5 Degrees |
| Axle Oscillation | 4 in / 0.1 m |
| Turning Radius (Inside) | 6 ft 9 in / 2.06 m |
| Turning Radius (Outside) | 15 ft 8 in / 4.78 m |
Engine
Dual Fuel – Kubota WG2503: 60 hp / 44 kW
Diesel Fuel – Deutz D2.9L Tier 4 Final: 49 hp / 36.4 kW
Fuel Tank Capacity: 16 gal / 60.6 L
Tires
Standard: Foam Filled, 33/1550 x 16.5
Optional:
- Foam Filled Low Profile Non-marking, IN135/55D20
- Foam Filled Low Profile, IN135/55D20
- Foam Filled Non-marking, 12 x 16.5
- Foam Filled, 12 x 16.5 or 33/1550 x 15.5
- Foam Filled Turf & Sand, 33 x 16LL500
- Solid Low Profile Non-marking, 33 x 12-20
Hydraulic System
System Capacity: 173 gal / 65.5 L
Tank Capacity: 15.3 gal / 58 L
Auxiliary Power: 12V DC
Standard Features
- 4-ft-1-in (1.24-m) Articulating Jib
- 5 Degree Tilt Alarm / Indicator Light
- 12V-DC Auxiliary Power
- 110V-AC Receptacle in the Platform
- Cast Aluminum Control Box
- ClearSky Smart Fleet™ Hardware (CSS0)**
- Control ADE® System
- LED Motion/Amber Beacon (CSS0)**
- Improved Multi-Function Controls
- Horn
- Hourmeter
- Gull-Wing Turntable Hoods
- Lifting/Tie Down Lugs
- Load Sensing System
- Motion Alarm
- Oscillating Axle
- Proportional Controls
- SkyGuard SkyLine™
- Swing-Out Engine Tray
- Four-Wheel Hydrostatic Drive
- Platform Console Machine Status Light Panel

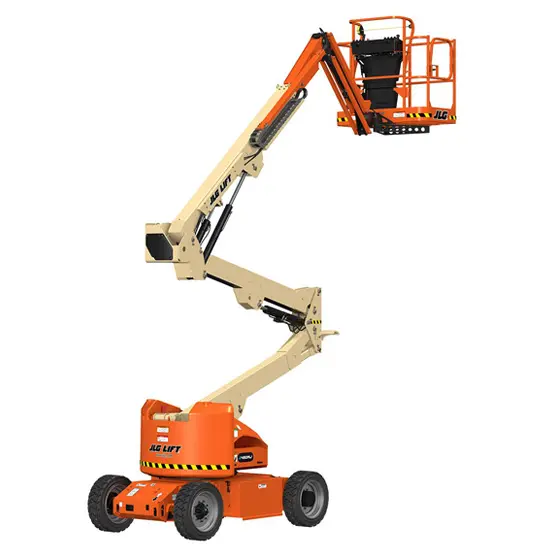

E450AJ Boom Lift
Key Specs
Platform Height: 45-ft / 13.72-m
Horizontal Outreach: 23-ft 9-in/ 7.24-m
Up and Over Reach: 25-ft 3-in / 7.7-m
Platform Capacity: 550-lb / / 227-kg
Key Features
- Maximum maneuverability by moving over uneven surfaces with Automatic Traction Control.
- Achieve optimum productivity with longer duty cycles.
- Produces zero emissions, 100% environmentally friendly
- Enhanced up and over access with jib.
Accessories & Options
1/2-in Airline to Platform
Ambient White Noise Alarm
Batteries, 305 Amp-Hr AGM
Inverter - 2000W2
Light Package5
Platform Mesh to Mid or Top Rail
Aluminum or Plastic
Platforms
- Drop Bar, 36 x 36-in, 30 x 48-in, 30 x 60-in, 30 x 72-in
- Fall Arrest, Rear Entry4,30 x 60-in,30 x 72-in
Bolt-on Fall Arrest System
- 30 x 48-in, 30 x 60-in1,3,6
Platform Padding3,7
- 30 x 48-in, 30 x 60-in
- Fall Arrest (Platform Required) 30 x 72-in
SkySense® Enhanced Detection System
Soft Touch, 30 x 60-in3
Storage Tray - Center
UL EE Rating
Standard Specifications
Performance
| Platform Height | 45 ft / 13.72 m |
| Horizontal Outreach | 23 ft 9 in / 7.24 m |
| Up and Over Height | 25 ft 3 in / 7.7 m |
| Swing | 360 Degrees Non-Continuous |
| Platform Capacity | 500 lb / 227 kg |
| Platform Rotator | 180 Degrees Hydraulic |
| Jib Range of Articulation (Vertical) | 141 Degrees (+86, -55) |
| Weight* | 14,400 lb / 6,532 kg |
| Ground Bearing Pressure | 110 psi / 7.6 kg/cm² |
| Max Drive Speed | 4.5 mph / 7.2 km/h |
| Gradeability | 30% |
| Turning Radius Inside (2WS/4WS) | 2 ft / 0.61 m |
| Turning Radius Outside (2WS/4WS) | 10 ft 4 in / 3.15 m |
Power Source
Electrical System: 48V DC
Batteries: 8 x 6V, 375 amp-hr
Drive Motors: Dual Electric Traction
Tires
Standard: In240/55D17.5 Foam-Filled
Non-marking
Optional:
- 26 x 7 x 20 Non-marking
- 240/55 x 17.5 Foam-filled
Hydraulic System
Capacity: 4 gal / 15.14 L
Motor/Pump: Permanent Magnet Motor/Gear Pump
Standard Features
- 110V-AC Receptacle in the Platform
- 12V DC Auxilliary Power
- 180 Degree Hydraulic Platform Rotator
- 3 Degree Tilt Cut-out
- All Motion Alarm
- Automatic Traction Control(ATC)
- Battery Condition Indicator
- Brushless AC Motors
- ClearSky Smart Fleet™ Hardware (CS550)
- Horn
- Hourmeter
- LED Motion/Amber Beacon (CS550)
- Lifting/Tie Down Lugs
- Load Sensing System
- Platform Console Machine Status Light Panel**
- SkyGuard SkyLine™
- Tilt Light and Alarm

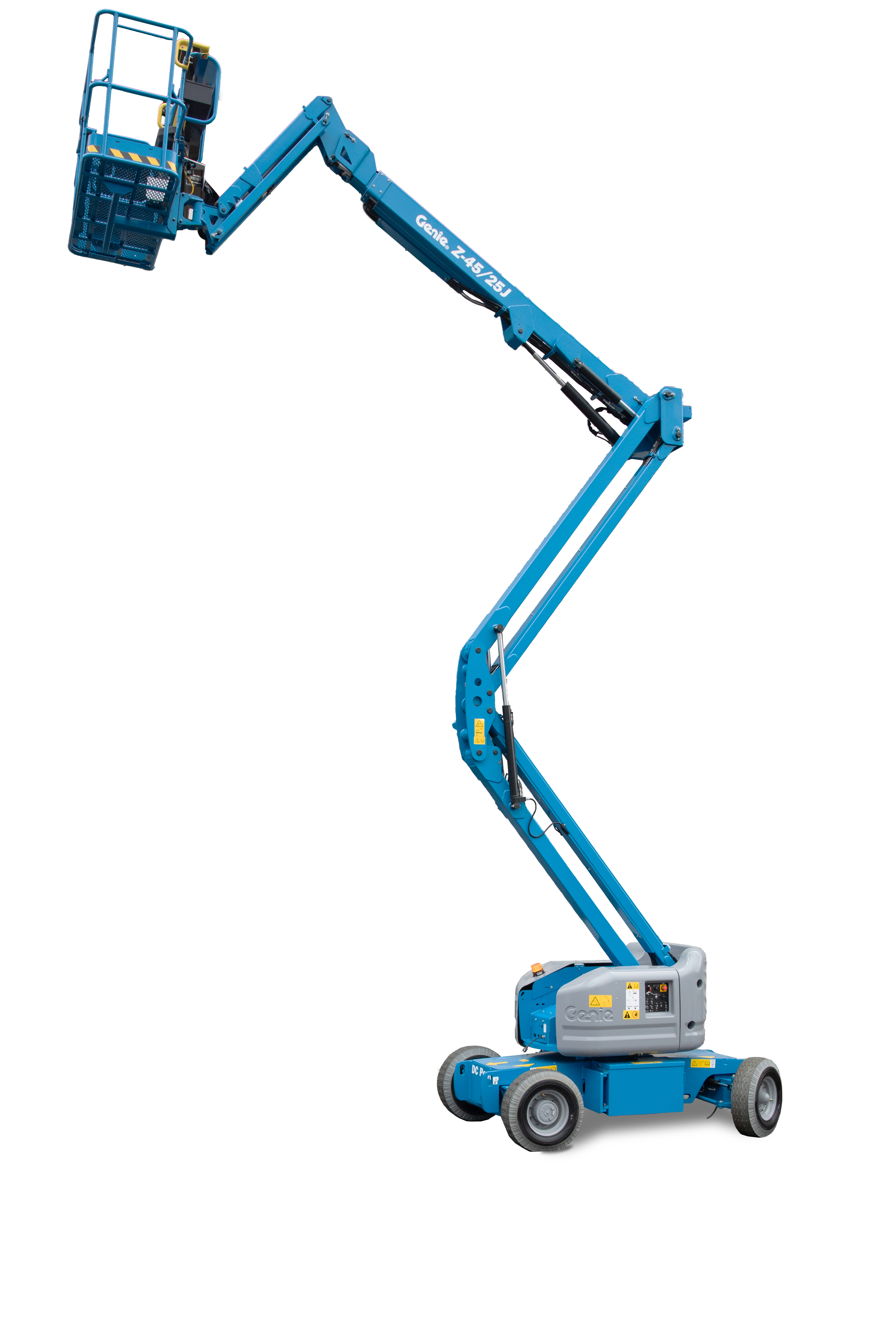

Z-45/25J DC
| Option Availability | S | S+ | BtO |
|---|---|---|---|
| Power | |||
| Standard FLA flooded lead acid battery | ✔ | ||
| Platform | |||
| 6ft/1.83m dual-entry platform with side swing gate | ✔ | ||
| Air line to platform | ❍ | ||
| Control box covers | ❍ | ||
| Lift Guard Half Mesh panels | ❍ | ||
| Light Package: drive and work lights | ❍ | ||
| Platform auxiliary top rail | ❍ | ||
| AC Power cord to platform | ✔ | ||
| Alarm package: flashing beacons, descent, travel and tilt alarms | ✔ | ||
| Drive enable system | ✔ | ||
| Horn | ✔ | ||
| LCD display | ✔ | ||
| Lift Guard Contact Alarm | ✔ | ||
| Lift Tools Work Tray | ✔ | ||
| Platform load sense system | ✔ | ||
| Proportional controls | ✔ | ||
| Self-leveling platform | ✔ | ||
| Chassis | |||
| Lift Connect Telematics | ❍ | ||
| Telematics-ready | ✔ | ||
| Lift Connect with Access Manager upgrade | ❍ | ||
| Industrial, foam-filled tires | ✔ | ||
| Industrial, foam-filled, non-marking tires | ❍ | ||
| Chassis tilt lift and drive function cut-out | ❍ | ||
| Tow package | ❍ | ||
| Chassis tilt drive function cut-out | ✔ | ||
| Dual parallelogram lift linkage | ✔ | ||
| Hour meter | ✔ | ||
| Zero tail swing | ✔ | ||
Standard Specifications
Performance
| Model | Z-45/25J DC |
|---|---|
| Working height max.(1) | 15.94m |
| Platform height max. | 13.94m |
| Horizontal reach max. | 7.65m |
| Up and over clearance max. | 7.24m |
| Platform length (A) | 0.76m |
| Platform width (B) | 1.83m |
| Height - stowed (C) | 2.00m |
| Length - stowed (D) | 6.83m |
| Width (E) | 1.79m |
| Wheelbase (F) | 2.03m |
| Ground clearance - center (G) | 0.24m |
Productivity
| Lift capacity max. - unrestricted | 227kg |
| Platform rotation | 160° |
| Jib length | 1.52m |
| Vertical jib rotation | 135° |
| Turntable rotation | 355° |
| Turntable tailswing | 0 cm |
| Drive speed - stowed(2) | 4.8 km/h |
| Drive speed - raised | 1.0 km/h |
| Gradeability - stowed(2) | 30% |
| Tilt sensor activation (front to back/side to side) | 2.5°-4.5° / 4.5° |
| Turning radius - inside/outside | 1.8m / 4.27m |
| Tires (solid, non-marking) | 0.23 × 0.37m |
Power
| Power | 48V DC (8 × 6V 350Ah) |
| Auxiliary power unit | 24V DC |
| Hydraulic tank capacity | 30.3 L |
Weight and Floor Loading
| Weight | 7,400kg |
| Tire contact pressure | 689 kPa |
| Occupied floor pressure (tires) | 15.08 kPa |
| Sound and Vibration Levels | |
|---|---|
| Sound Pressure level (ground workstation) | < 70 dBA |
| Sound Pressure level (platform workstation) | < 70 dBA |
| Vibrations | 2.5m/s² |
SKU: Standard Model
• Z-45/25J DC, DC Power, 2WD*
• Z-45/25J BE, Bi-Energy, 2WD*
