Hydra Crane
Gurukrupa Cranes specializes in providing efficient and dependable Hydra Crane services for various industrial, construction, and infrastructure projects. With experienced operators and well-maintained equipment, we ensure safe and timely lifting solutions tailored to your needs.
At Gurukrupa Cranes, we take pride in being a leading provider of Hydra Crane services for a wide range of industries including construction, infrastructure, manufacturing, logistics, and more. With years of experience and a strong commitment to safety, efficiency, and customer satisfaction, we have built a reputation for reliable crane rental solutions tailored to meet the specific needs of our clients.
Crane Model: 12XW
ACE manufactures 12XW Pick-n-Carry Crane with 12 tons lifting capacity. This crane is widely used throughout the engineering, construction and infrastructure industry. This machine is used for loading, unloading, moving, shifting and erecting material.
12 Tonnes
Mahindra 4485 IAE (BS III CEV), 4 cylinder, water cooled diesel engine or suitable equivalent engine
Rated Power: 47.5 HP (34.9 KW) at 2200 RPM
Heavy duty, sliding mesh with 6 forward and 2 reverse speeds with high/low range selector
Clutch: Heavy duty, single, dry friction, cerametallic clutch plate with diaphragm type pressure plate
Top Speed: 28 KMPH without load
55° articulation through 2 hydraulic cylinders on either side and turning radius of 6.5 Mtrs. (approx) on outer edge of rear wheels
Pneumatically assisted hydraulic brakes. Front and rear brakes are actuated through a single pedal
Parking brake is provided
- Gear/Intra vane type main pump
- Four spool control valve
- Suction line has 100 mesh size strainer while return line is fitted with 25 micron filter
- Two double acting lift cylinders, two double acting steering cylinders and one double acting extension cylinder
12V, Negative earth with 35 Amp. alternator and 75 Amp. hr battery
Two part boom with hydraulically operated extension
Telescoping Time: 12 Seconds
Range: -5° to +60°
Time: 21 Seconds
9250 kgs. (2 Part)
Winch is driven by hydraulic motor employing 4 falls of 13 mm dia rope and fitted with hook block
Hoist Speed: 50 Mtrs./Min. (Line speed)
Front: 11.00 x 20 - 16 PR (4 Nos.)
Rear: 13.00 x 24 - 12 PR (2 Nos.)
- Audio overload indication
- Hose failure protection
- Audio over hoisting indication
- Safety brakes on hoist
- Cylinder guards
Engine: 7.00 Ltrs.
Fuel Tank: 45.00 Ltrs.
Hydraulic Tank: 125.00 Ltrs.
Transmission: 48.00 Ltrs.
- ROPS fully enclosed wide view cabin with rotomould canopy
- Front tyre protector
- Front and rear work lights
- Reflectors & rear view mirror
- Tool kit
- Gauges:
- Water temperature
- Engine oil pressure
- RPM meter cum hour recorder
- Air pressure
- Fly jib (1.25 tonnes max capacity)
- Steering wheel
- Air brakes
- Three part boom (height 11.1 mtrs or 12.8 mtrs)
- Spark arrester
- Simpson S433 Engine
- Fire extinguisher
- City type double driving cabin
- Over hoisting hydraulic cut off
- Safe load indicator / LMI
- Slotted boom

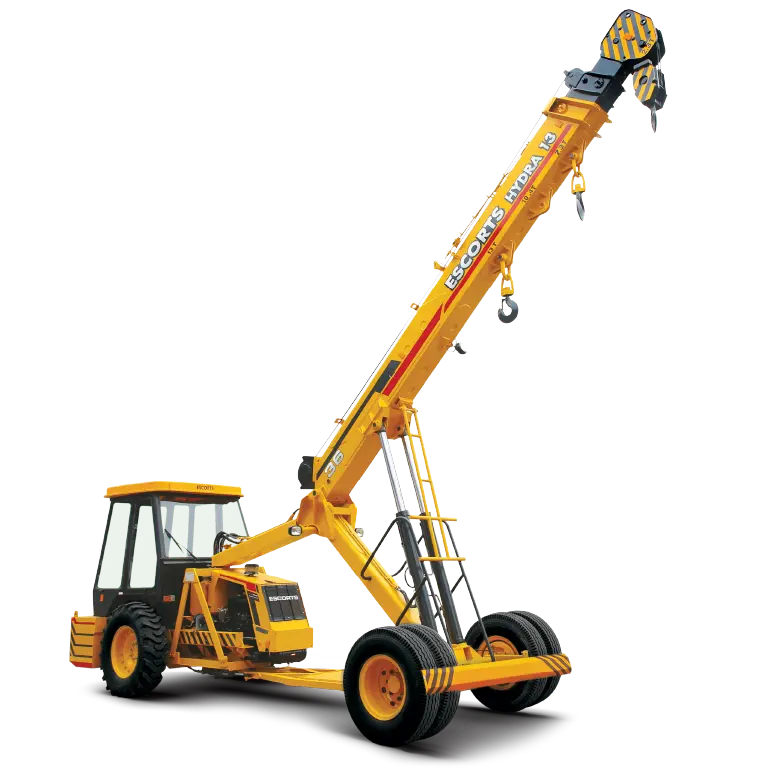

Crane Model: HYDRA 13
The Escorts Hydra 13 is a versatile and powerful crane designed to meet the rigorous demands of the construction and industrial sectors. Known for its superior lifting capacity and precision, the Hydra 13 is equipped with advanced hydraulic systems and a robust engine, ensuring reliable performance and enhanced productivity. Its user-friendly interface and safety features make it an ideal choice for operators, providing efficiency and confidence in various material handling tasks.
13 Tonne at: 1.7 m radius
4.2 Tonne at: 8.2 m radius
Make & Model: Simpson S 433 (I) — CEV BS III, 4 cylinder, water cooled diesel engine developing 48 HP @ 2200 RPM or equivalent
Drive: 2 Wheel drive
Type: Heavy duty transmission developed especially for crane application.
Constant mesh gearbox coupled with straight drive axle.
Eight forward and two reverse speeds with high/low selector lever
Creep Speed: 1.9 km/hr, ideal for crane operation
Max. Speed: 29 km/hr (unladen)
Clutch: Heavy duty clutch, wire woven, asbestos free
Type: Articulated power steering, hydraulically controlled through 2 double
acting jacks
Articulation: Up to 50°
Turning Radius: Approx 6.75 m
Hoist: Hydraulic winch, Four falls, Rope dia 13 mm
Front Wheel: Pneumatic assisted hydraulic brakes
Rear Wheel: Disk brakes actuated through a slave cylinder
Parking:
Hand control valve operated, Air assisted
Hydraulic parking brakes at all wheels (Standard models)
Hand control valve operated, Air assisted
Parking brakes at Front wheels (with Air brake models)
Pump: Vane type hydraulic pump
Control Valve: 4 spool control valve with built in pressure relief valve and
precision control
Hydraulic Filter: Suction line has a 100 mesh inline strainer while return line
has 25 microns full flow filter
Type:12V Single battery, Negative earth
Fuel Tank: 45 ltrs
Hydraulic Tank: 65 ltrs
Front: 1930 mm
Rear: 1680 mm
Length: 10970 mm
Width: 2550 mm
Height: 3100 mm
Gross vehicle weight: 11000 kg
Telescoping: 3 parts hydraulically powered & fully synchronized
Derricking: Through double acting jacks
Front: 10.00 x 20 - 16 PR (4 nos.), inflation pressure 110 - 115 PSI
Rear: 13.00 x 24 - 12 PR (2 nos.), inflation pressure 35 PSI Water ballasted
- Overload audio warning system
- Safety brakes on hoist
- Cylinder guard for protection
- Rope compensation for auto leveling
- Counter balance protection valve in the lift line against hose burst
- Visual warning against parking brakes ON
- All Weather Cabin
- Lift Cylinder Guard
- Turn & Reverse Lamp
- Front Bumper
- Rear View Mirror
- Reflectors
- Fly Jib
- Tool Box
- Spark Arrestor
- Fire Extinguisher
- Safe Load Indicator (SLI)
- 14 x 24 Heavy Duty Tyres
- Air Brakes on Front Wheel
- Over Hoist & Hydraulic Cutoff Kit
Our Services
🏗️ Hydra Crane Rental
We offer well-maintained Hydra Cranes ranging from 12 to 20 tons, ideal for lifting, shifting, and transporting heavy materials and machinery on-site. Whether you need a crane for a day or a long-term project, we have flexible rental options to suit your requirements.
🧰 Industrial Equipment Lifting
Our cranes and trained operators handle heavy industrial equipment with precision, ensuring damage-free lifting and placement. From factory machines to transformers, we make the process smooth and safe.
🚧 Construction Site Support
We assist in lifting construction materials, steel structures, precast components, and more—helping keep your site running on schedule.
🔄 Shifting and Relocation
Need to move large machinery or infrastructure from one place to another? Our Hydra Cranes are equipped to manage such tasks effortlessly.
Why Choose Gurukrupa Cranes?
✅ Experienced Operators
Our skilled and certified operators ensure safe handling of every lifting operation.
✅ Well-Maintained Fleet
We regularly inspect and maintain all our cranes to meet the highest safety and performance standards.
✅ On-Time Service
We understand the value of time in your project. Our team is punctual and dependable.
✅ Affordable Pricing
Get high-quality crane rental services at competitive rates.
✅ 24/7 Support
We are available round-the-clock to handle emergency lifting jobs and urgent requirements.
